429008 (1)

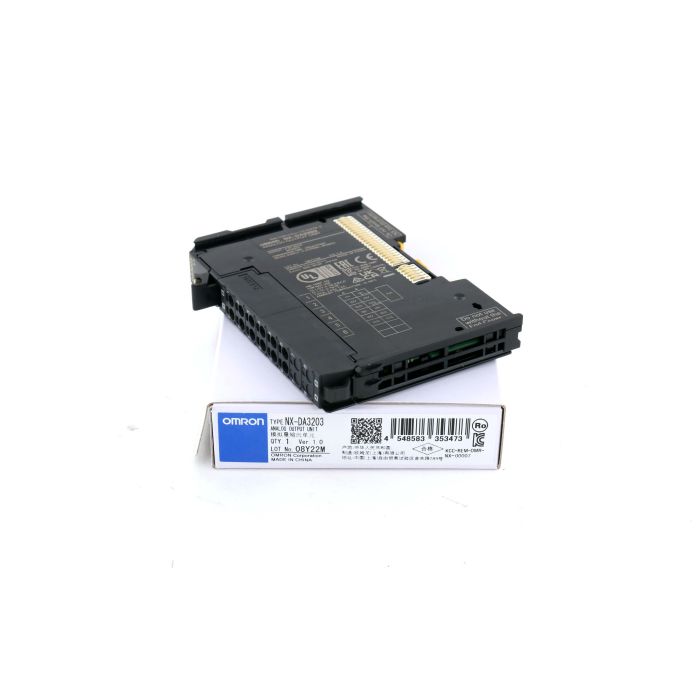

OMRON NX-DA3203 ANALOG I/O UNIT New

OMRON NX-DA3203
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
OMRON
HAN:
NX-DA3203
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The Omron NX-DA3203 analog output unit delivers precise 4 to 20 mA current loops for the NX I/O system, enabling accurate actuator control and signal transmission in machine automation and process equipment. With its 12 mm-wide housing and push-in wiring, it saves cabinet space and reduces installation time for OEMs and system integrators.

Designed for deterministic performance on the NX I/O Bus, this module provides four analog outputs with 13-bit resolution for stable, low-noise current output. Free-running signal processing and a conversion time of 1 ms/unit support fast control loops, while the detachable terminal block simplifies service and panel builds. Rated IP20 for control cabinets, it integrates seamlessly into modern PLC architectures requiring reliable 4 to 20 mA outputs.

Whether you are standardizing on the Omron NX platform or expanding an existing line, the NX-DA3203 helps you achieve consistent analog performance with minimal footprint, and it comes backed by a 1-year warranty to support dependable operation throughout your commissioning and maintenance cycles.

  • Brand: Omron
  • Series: NX I/O
  • Model: NX-DA3203
  • Analog outputs: 4
  • Output type: 4 to 20 mA
  • Resolution: 13 Bit
  • Conversion time: 1 ms/unit
  • Connection type: Push-in
OMRON NX-DA3203 ANALOG I/O UNIT, 4 ANALOG OUTPUTS, 4 - 20 MA, RESOLUTION 1:8000, 250 µS/CH, SCREWLESS PUSH-IN CONNECTOR, 12 MM WIDE
