429495 (4)

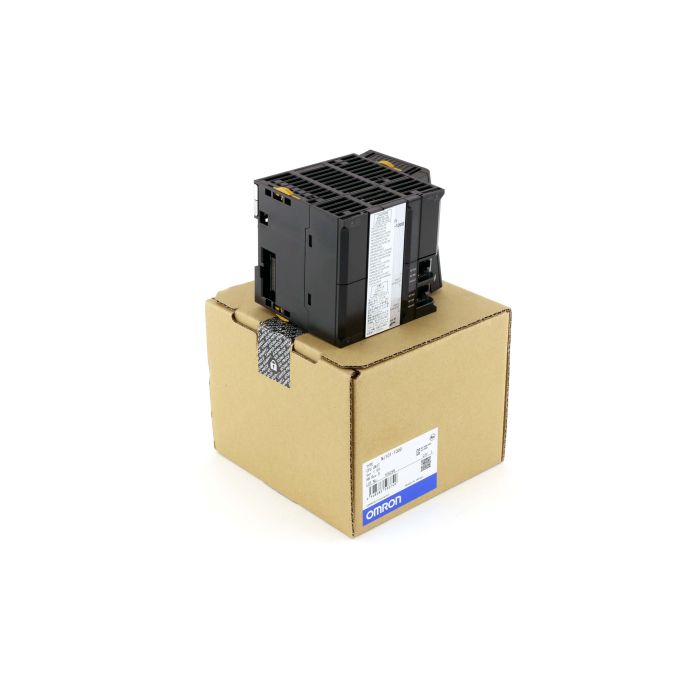

OMRON NJ101-1000 NJ101 NJ1 PROGRAMABLE LOGIC CONTROLLER New

OMRON NJ101-1000
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
OMRON
HAN:
NJ101-1000
Condition:
New
Logistics
Weight:
0.70kg
Country of Manufacture:
Taric-Code:
85389091

The Omron NJ101-1000 is a compact NJ1 Series programmable logic controller built for high-performance machine automation. Combining motion control and sequence control in a single platform, it delivers deterministic operation for packaging, material handling, and light assembly machines that require precise multi-axis coordination and fast PLC cycle times.

With a 1 ms primary task cycle and support for up to 2 synchronized axes via EtherCAT Master, the NJ101-1000 manages up to 6 axes including virtual axes for advanced camming and gearing. Integrated EtherNet/IP provides controller-to-controller and I/O networking (up to 32 connections), while USB simplifies engineering access. Extensive fieldbus options enable flexible topology and retrofit: CAN, CompoNet Master, DeviceNet (Master/Slave), EtherCAT Slave, MODBUS (Master/Slave), PROFIBUS DP (Master/Slave), PROFINET Master, and Serial RS-232C/RS-422/RS-485. The CJ I/O Bus supports scalable architectures with up to 64 remote I/O nodes and up to 40 expansion units, supported by 3 MB program memory and 0.5 MB variable memory for complex applications.

Engineered for reliable performance in demanding industrial environments, this PLC reduces commissioning time and safeguards uptime with proven Omron motion libraries and broad network interoperability; it is a future-ready control solution that helps standardize your machine platform and comes backed by a 1-year warranty for added assurance in long-term operations.

  • Brand: Omron
  • Series: NJ1 Series
  • Model: NJ101-1000
  • Primary task cycle time: 1 ms
  • Max synchronous axes: 2
  • Max axes (incl. virtual): 6
  • Communication ports: EtherCAT Master, EtherNet/IP, USB
  • Communication options: CAN, CompoNet Master, DeviceNet Master/Slave, EtherCAT Slave, MODBUS Master/Slave, PROFIBUS DP Master/Slave, PROFINET Master, Serial RS-232C/RS-422/RS-485
OMRON NJ101-1000 NJ101 NJ1 PROGRAMABLE LOGIC CONTROLLER BUILT-IN ETHERNET/IP™ UP TO 32 CONNECTIONS, ETHERCAT® UP TO 2 SYNCHRONOUS AXES
