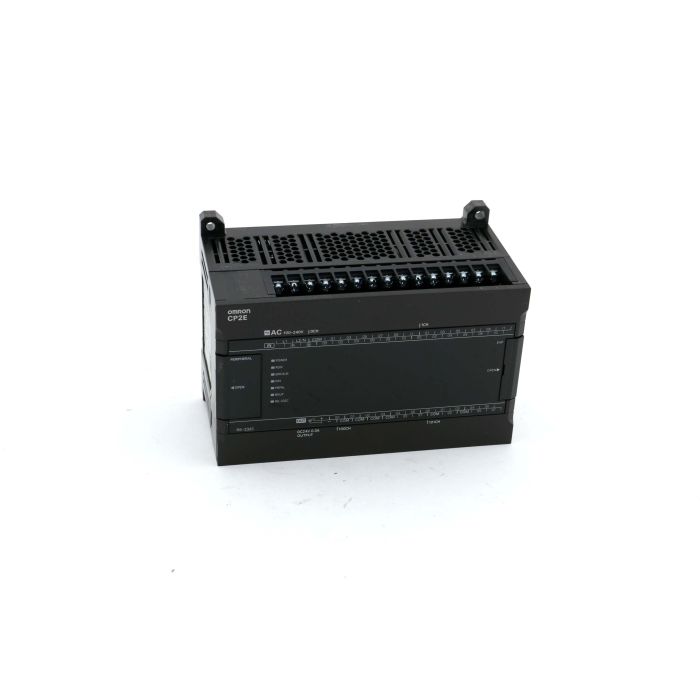

OMRON CP2E-E40DR-A CP2E SERIES COMPACT PLC New

OMRON CP2E-E40DR-A
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
OMRON
HAN:
CP2E-E40DR-A
Condition:
New
Logistics
Weight:
0.70kg
Country of Manufacture:
EAN:
4549734542500
Taric-Code:
85389091

Designed for dependable machine control in compact panels, the Omron CP2E-E40DR-A compact PLC from the CP2E series combines essential functionality with a small footprint. With 24 digital inputs and 16 relay outputs, it handles a wide range of discrete automation tasks while PNP/NPN input compatibility simplifies sensor selection. The AC-supplied controller also provides a built-in 24 VDC auxiliary output (300 mA) to power field devices and reduce external supplies.

Engineered for performance and maintainability, it delivers 0.23 µs instruction execution, 8 K steps of program capacity and 4 K words of data memory. Six high-speed encoder input channels up to 100 kHz support accurate counting, while onboard RS-232C and USB enable programming and device connection; a CompoBus/S slave option offers straightforward remote I/O networking. Up to 3 expansion units and as many as 160 local I/O points are supported, and features like function block programming and battery-free memory backup streamline commissioning and service across an operating range of −20 to 60 °C; for applications that do not require Ethernet, the CP2E-E40DR-A provides reliable serial connectivity.

Ideal for OEMs and panel builders seeking a robust, cost-effective PLC for packaging, material handling and general machinery, this controller shortens project lead times without compromising reliability and is backed by a 1-year warranty to protect your investment.

  • Brand: Omron
  • Series: CP2E
  • Model: CP2E-E40DR-A
  • Supply voltage type: AC
  • Input type: PNP/NPN
  • Output type: Relay
  • Digital inputs: 24
  • Digital outputs: 16
OMRON CP2E-E40DR-A CP2E SERIES COMPACT PLC - ESSENTIAL TYPE; 24 DI, 16 DO; RELAY OUTPUT; POWER SUPPLY 220 VAC; 4 KSTEP PROGRAM MEMORY
