429119 (1)

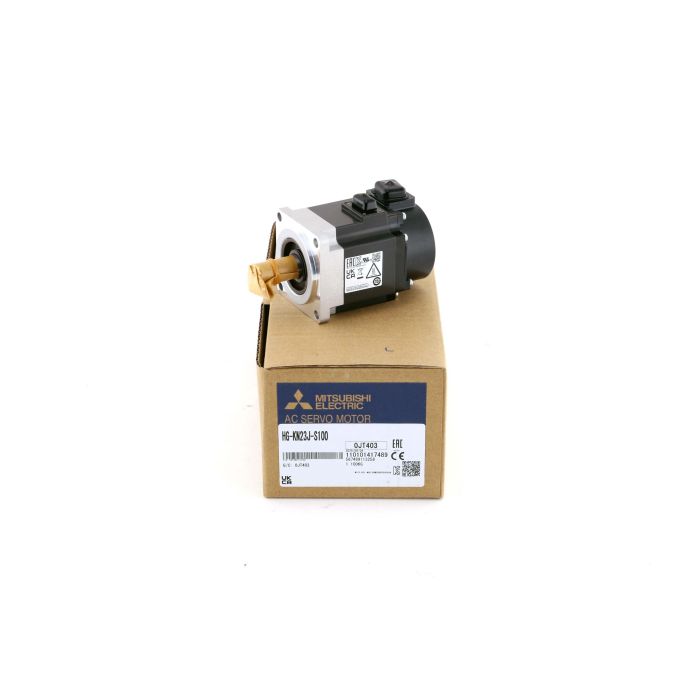

MITSUBISHI ELECTRIC HG-KN23J-S100 AC BRUSHLESS ROTARY SERVO MOTOR New

MITSUBISHI ELECTRIC HG-KN23JK
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
MITSUBISHI ELECTRIC
HAN:
HG-KN23J-S100
Condition:
New
Logistics
Weight:
1.00kg
Country of Manufacture:
Taric-Code:
85015230

Designed for high-throughput machines, the Mitsubishi Electric HG-KR73 is a compact, low-inertia AC servo motor from the MELSERVO-J4 series that delivers fast response and precise motion control for packaging lines, pick-and-place systems, and light-duty machine tools.

With a rated output of 0.75 kW and 2.4 Nm continuous torque, the HG-KR73 accelerates cleanly to a rated 3000 rpm and up to 6000 rpm peak. A 22-bit encoder (4,194,304 ppr) provides high-resolution feedback for tight positioning and stable speed control. The 200 VAC class design, low rotor inertia of 1.26 kg·cm², IP65 sealing, straight shaft configuration, and no holding brake make it a robust choice for compact, high-dynamic axes in demanding environments.

Optimized for seamless integration with Mitsubishi MELSERVO-J4 amplifiers, this servo helps reduce commissioning time while improving reliability, and it is supported by a 1-year warranty to safeguard your investment as the machine enters its first operating cycle.

  • Brand: Mitsubishi Electric
  • Series: MELSERVO-J4
  • Rated output: 0.75 kW (750 W)
  • Torque: 2.4 Nm rated, 8.4 Nm max
  • Speed: 3000 rpm rated, 6000 rpm max
  • Supply voltage: 200 VAC
  • Encoder resolution: 22-bit (4,194,304 ppr)
  • Protection rating: IP65
MITSUBISHI ELECTRIC HG-KN23JK AC BRUSHLESS ROTARY SERVO MOTOR WITH KEYED SHAFT + BUILT-IN ABSOLUTE FEEDBACK ENCOD. (17-BIT) + OIL SEAL - MITSUBISHI ELECTRIC (MELSERVO JE SERIES) - RATED OUTPUT 200W / 0.2KW - 131072PPR (EQUIVALENT TO 17-BIT) FEEDBACK - RATED CURRENT 1.3A - SUPPLY VOLTAGE 200VAC CLASS - RATED TORQUE 0.64NM NOMINAL - RATED ROTATIONAL SPEED 3000RPM - 60X60MM FLANGE MOUNTING - IP65 - RATED FOR 0...+40°C AMBIENT
