427725 (1)

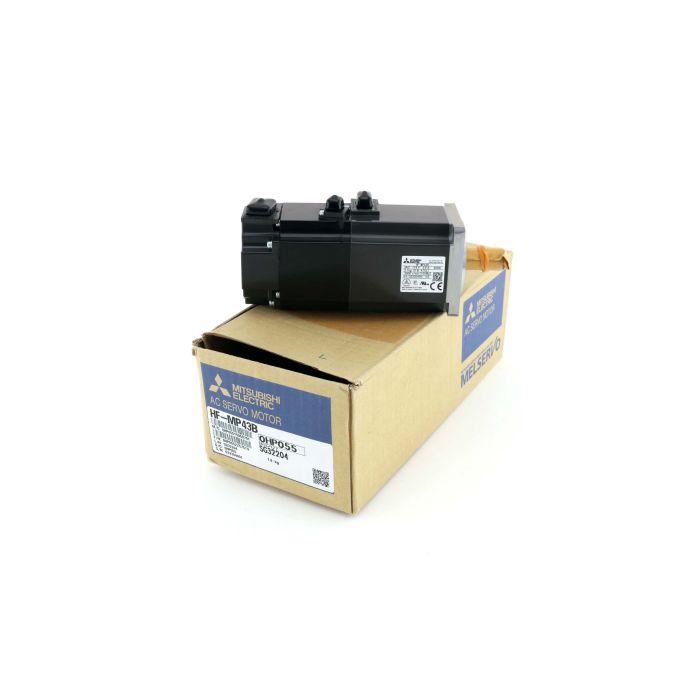

MITSUBISHI ELECTRIC HF-MP43B AC BRUSHLESS ROTARY SERVO MOTOR New

MITSUBISHI ELECTRIC HF-MP43B
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
MITSUBISHI ELECTRIC
HAN:
HF-MP43B
Condition:
New
Logistics
Weight:
1.80kg
Country of Manufacture:
Taric-Code:
85389091

Designed for demanding industrial automation, this compact Mitsubishi Electric low-inertia AC servo motor from the MELSERVO-J3 family delivers precise positioning, fast response, and high reliability for packaging machinery, assembly systems, and electronics handling. Its 60 mm frame and IP65 construction make it easy to integrate on crowded machines while resisting dust and water jets, helping OEMs and machine builders increase throughput without compromising durability.

At 0.4 kW in the 200 VAC class, the motor provides 1.3 Nm rated torque at 3000 rpm with headroom to 6000 rpm for dynamic moves. The 18-bit absolute encoder (262,144 ppr) delivers high-resolution feedback for smooth servo tuning, while the low-inertia rotor and straight shaft enable crisp acceleration; an oil seal helps maintain the IP65 rating. With no holding brake for maximum dynamics and approvals including CE, UL/cUL, EAC, and UKCA, it pairs seamlessly with Mitsubishi MELSERVO amplifiers.

Whether for a new build or a retrofit, this servo motor shortens cycle times and improves positioning accuracy with minimal maintenance, and to support your investment it comes with a 1-year warranty for added peace of mind.

  • Brand: Mitsubishi Electric
  • Series: MELSERVO-J3
  • Model: HF-KP43J-S13
  • Power/supply: 0.4 kW, 200 VAC
  • Rated torque: 1.3 Nm
  • Rated/maximum speed: 3000/6000 rpm
  • Encoder resolution: 262144 ppr (18-bit absolute)
  • Protection rating: IP65
MITSUBISHI ELECTRIC HF-MP43B AC BRUSHLESS ROTARY SERVO MOTOR WITH STRAIGHT SHAFT + BUILT-IN E/M BRAKE + BUILT-IN ABSOLUTE FEEDBACK ENCOD. (18-BIT) - MITSUBISHI ELECTRIC (MELSERVO J3 SERIES) - RATED OUTPUT 400W / 0.4KW - RATED CURRENT 2.7A - SUPPLY VOLTAGE 200VAC CLASS - RATED TORQUE 1.3NM NOMINAL - RATED ROTATIONAL SPEED 3000RPM - 60X60MM FLANGE MOUNTING - IP65 - RATED FOR 0...+40°C AMBIENT
