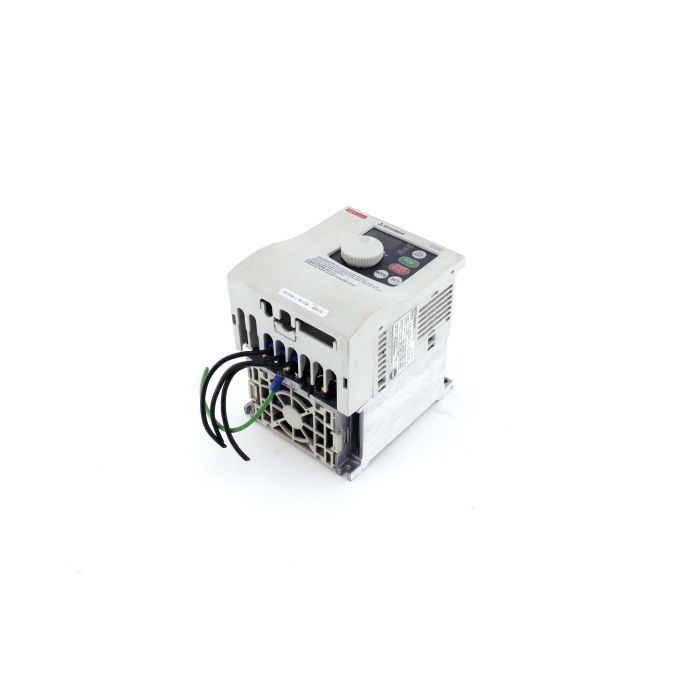

The Mitsubishi Electric FR-D820-1.5K-070-EPB-60 is a compact, 200 V class frequency inverter engineered for dependable motor control in industrial environments. Delivering 1.5 kW of drive capacity with robust 3-phase operation, it is a strong fit for pumps, fans, conveyors, and general-purpose automation where efficient speed regulation and networked control are required. Native industrial Ethernet capability including PROFINET streamlines integration into modern PLC architectures and plant networks.

Built for precise performance, the drive combines advanced magnetic flux vector control, PM sensorless vector control, and V/F control for stable torque across a wide speed range from 0.2 to 590 Hz. It provides a rated output current of 7.0 A (ND) with up to 10 A (SLD) for short-duration overloads, and supports an input window of 170 to 264 V in the 200 V class, 3-phase. Safety is reinforced with Safe Torque Off (STO), while IP20 protection suits cabinet installation. Practical commissioning features include a built-in 4-digit LED display, USB Type-C port, and spring-clamp terminals. I/O is extensive with 5 digital inputs, 2 analog inputs, 1 analog output, 1 transistor output, and 1 relay output. Communications are ready with one Ethernet port and protocol support for PROFINET, CC-Link IE Field Network Basic, CC-Link IE TSN, and Modbus/TCP. A 100% ED braking chopper enables effective deceleration when required.

Whether in new builds or retrofits, this FR-D800 series inverter helps reduce engineering time and increase system uptime through reliable control and straightforward integration, and it is backed by a 1-year warranty to support long-term operation and service planning.

• Brand: Mitsubishi Electric
• Series: FR-D800 Series
• Model: FR-D820-1.5K-070-EPB-60
• Supply voltage: 3-phase, 200 V class (170 to 264 V)
• Rated motor power (ND): 1.5 kW
• Rated output current (ND): 7.0 A
• Network interfaces: PROFINET, CC-Link IE Field Network Basic, CC-Link IE TSN, Modbus/TCP
• Protection rating: IP20
