429322 (1)

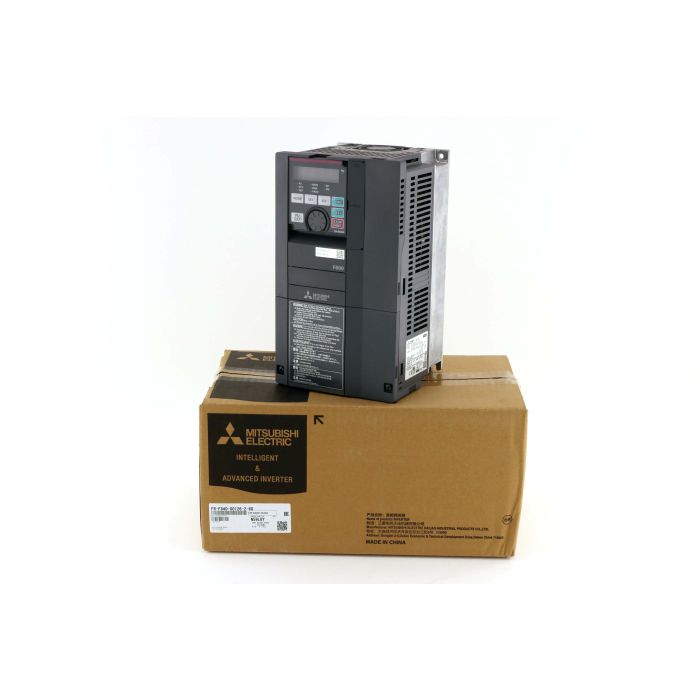

MITSUBISHI ELECTRIC FR-F840-00126-2-60 INVERTER New

MITSUBISHI ELECTRIC FR-F840-00126-2-60
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
MITSUBISHI ELECTRIC
HAN:
FR-F840-00126-2-60
Condition:
New
Logistics
Weight:
3.50kg
Country of Manufacture:
Taric-Code:
85044090

The Mitsubishi Electric FR-F840-00126-E2-60 is a compact IP20 variable frequency drive from the FR-F800 series that delivers efficient 5.5 kW control for three-phase motors on 380–500 V AC systems. Designed for reliable speed and torque regulation in industrial and building services, it supports both induction and permanent magnet motors to optimize performance and energy use.

Equipped with advanced control modes—V/F, Soft-PWM/High-Frequency PWM, PM sensorless vector, and magnetic flux vector control—the inverter provides smooth, precise operation across a wide 0.2–590 Hz output range. An integrated EMC filter and Safe Torque Off enhance compliance and safety, while a 5-digit LED keypad (FR-DU08) streamlines commissioning. The unit offers 12 digital inputs, 3 analog inputs, 2 analog outputs, and 5 transistor plus 2 relay outputs, plus 1 Ethernet port with CC-Link IE Field Network Basic, Modbus/TCP, BACnet/IP and SLMP connectivity; spring-clamp terminals simplify panel wiring.

With a rated output current of 12.6 A (SLD) at 5.5 kW and approvals including CE, UL/cUL and UKCA, this drive is a strong choice for OEMs, panel builders and maintenance teams seeking robust automation hardware, combining dependable performance with easy integration and the added assurance of a 1-year warranty.

  • Brand: Mitsubishi Electric
  • Series: FR-F800
  • Model: FR-F840-00126-E2-60
  • Rated power: 5.5 kW
  • Rated output current: 12.6 A (SLD)
  • Supply voltage: 3x 380–500 V AC (323–550 V allowable)
  • Output frequency range: 0.2–590 Hz
  • Protection rating: IP20
MITSUBISHI ELECTRIC FR-F840-00126-2-60 INVERTER FR-F800 SERIES, 400 V CLASS, 3-PHASE, STANDARD MODEL, 12.6 AMP, 5.5 KW, 400 / 415/ 480 VAC - SUPPLY VOLTAGE, 0.2- 590 HZ (OUTPUT) NETWORK FREQUENCY, CA TYPE - RS-485, W/ CONFORMAL COATING
