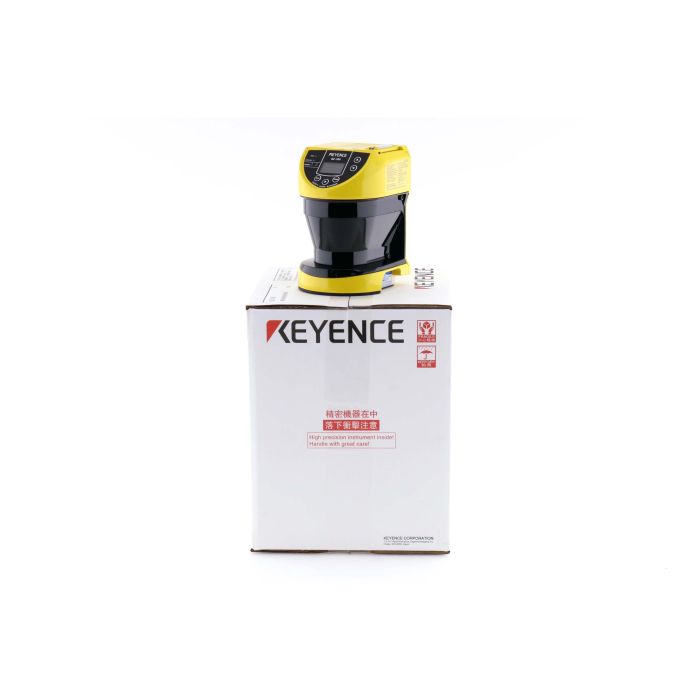

The KEYENCE SZ-16V safety laser scanner main unit is engineered for flexible multi-bank zone safeguarding across AGVs, robotic cells, and industrial machinery. It combines compact form factor with rugged construction to enhance machine safety without compromising uptime, making it a dependable choice for machine builders, OEMs, and system integrators focused on high availability and compliance.

With a 270° scan angle (-45° to 225°) and a protective field up to 4.2 m, the SZ-16V delivers precise, application-tuned detection using selectable resolutions of 30, 40, 50, 70, or 150 mm. A Class 1 infrared 905 nm laser and configurable scan cycles provide fast response from 60 to 480 ms, while dual OSSD safety outputs (PNP or NPN selectable via connector cable) simplify integration with safety relays and controllers. Certified to Type 3 ESPE/AOPDDR, SIL2, and PL d Cat. 3, and rated IP65, it is designed for demanding factory environments; operation from -10 to +50 °C, EMC Class A, 24 VDC supply (tolerance per power source), and cable runs up to 30 m support robust deployment.

Whether modernizing existing guarding or commissioning new mobile automation, this multi-bank scanner streamlines setup, enables flexible zone switching, and helps sustain safe throughput, all while providing added assurance through an integrated 1-year warranty.

• Brand: KEYENCE
• Series: SZ
• Model: SZ-16V
• Detection angle: 270° (-45° to 225°)
• Protective field: up to 4.2 m
• Supply voltage: 24 VDC (converter ±10%; battery +20/-30%)
• Outputs: OSSD PNP/NPN selectable, 2 channels
• Protection rating: IP65
