429887 (1)

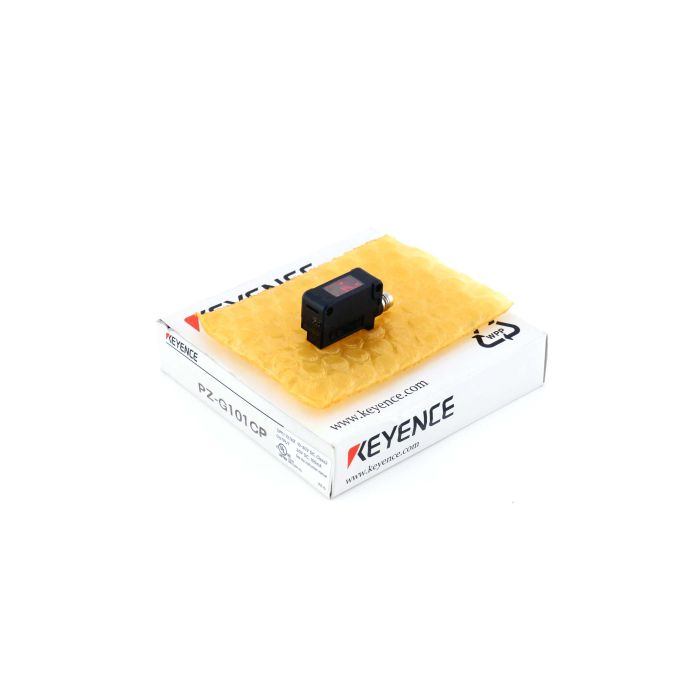

KEYENCE PZ-G101CP SELF-CONTAINED THREADED SENSORS New

KEYENCE PZ-G101CP
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
KEYENCE
HAN:
PZ-G101CP
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The KEYENCE PZ-G101CP is a compact, industrial photoelectric sensor designed for reliable presence detection on fast-moving equipment. With a narrow optical spot and diffuse reflective sensing, it delivers accurate switching on tight fixtures and small targets up to 200 mm, making it an excellent fit for conveyors, assembly lines, and packaging machinery.

Built for demanding environments, the PZ-G series combines a red LED emitter with a precise sensitivity trimmer for quick setup, while selectable LIGHT-ON/DARK-ON operation simplifies integration across PLC I/O. The PNP open-collector output (30 V, 100 mA) and 10–30 VDC supply suit common control cabinets, and the M8 connector speeds field replacement. A rugged, fiber-reinforced housing with IP67/IP69K (NEMA 4A, 6, 12) sealing resists washdown and dust, supported by fast 500 µs response, interference suppression, and stable operation indicators.

Engineered to reduce false triggers under ambient light and to maintain uptime in harsh conditions, this sensor helps machine builders and maintenance teams achieve consistent detection performance, and it comes with a 1-year warranty for added assurance throughout the first year of service.

  • Brand: KEYENCE
  • Series: PZ-G
  • Model: PZ-G101CP
  • Sensing range: 200 mm
  • Output type: PNP open-collector, 30 V max, 100 mA max
  • Supply voltage: 10 to 30 VDC
  • Connection type: M8 connector
  • Protection rating: IP67/IP69K, NEMA 4A, 6, 12
KEYENCE PZ-G101CP SELF-CONTAINED THREADED SENSORS
