428902 (1)

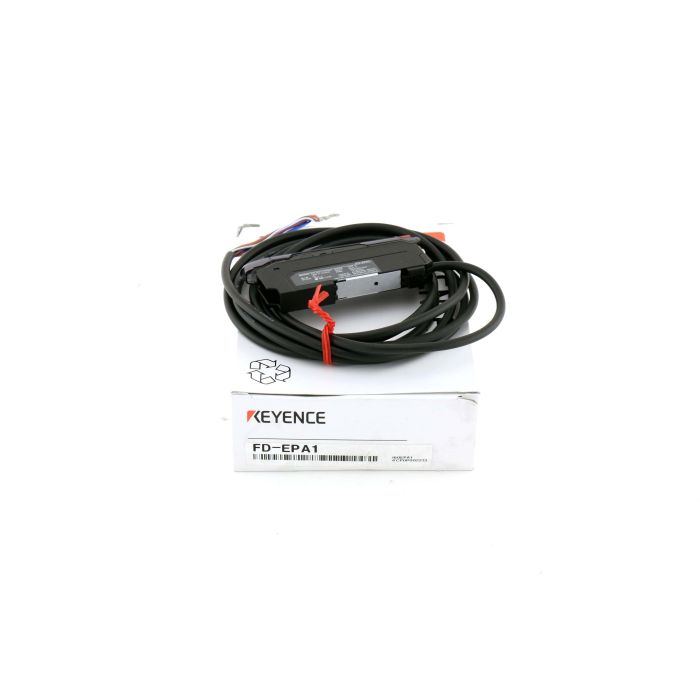

KEYENCE FD-EPA1 FLOW AND PRESSURE DUAL SENSOR New

KEYENCE FD-EPA1
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
KEYENCE
HAN:
FD-EPA1
Condition:
New
Logistics
Weight:
0.20kg
Country of Manufacture:
Taric-Code:
85389091

The KEYENCE FD-EPA1 cable-type amplifier unit for the FD-EP series delivers precise flow and pressure monitoring in industrial automation applications. Engineered for reliability, it supports dual sensing capabilities essential for process control and optimization in manufacturing environments.

Equipped with three NPN/PNP selectable control outputs, one 4-20 mA/0-20 mA analog output, and two external inputs, this amplifier offers selectable response times from 50 ms to 5 s for flow and 2.5 ms to 5 s for pressure. IO-Link compatibility ensures seamless integration, while comprehensive protection circuits safeguard against reverse polarity, overcurrent, and wiring errors.

Built with a robust polycarbonate housing and rated for -10 to +55 °C operation, the FD-EPA1 withstands vibrations and shocks, providing dependable performance backed by a 1-year warranty.

  • Brand: KEYENCE
  • Series: FD-EP
  • Model: FD-EPA1
  • Supply voltage: 24 VDC +20%/-10%
  • Control outputs: 3 (NPN/PNP selectable)
  • Analog output: 1 (4-20 mA/0-20 mA)
  • Power cable: 2 m
  • Network compatibility: IO-Link
KEYENCE FD-EPA1 FLOW AND PRESSURE DUAL SENSOR, AMPLIFIER UNITS CABLE TYPE
