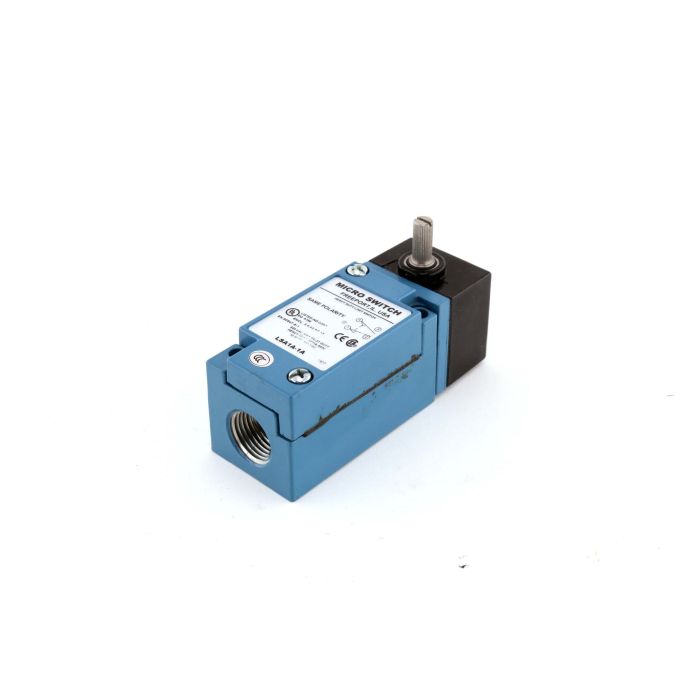

Engineered for demanding industrial automation, the Honeywell HDLS LSA1A-1A Micro Switch Heavy Duty Limit Switch delivers accurate position feedback in machine safety, conveying, and material handling applications. Its rugged metal housing and global approvals make it a dependable choice for harsh environments and control panels where uptime and compliance are critical.

The HDLS design combines a boss-and-socket head interface for secure retention, an all-metal drive train for consistent actuation even at elevated temperatures, and self-lifting pressure plate terminals to speed wiring. The enclosure is sealed to NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 and IP65/66/67 for dust and water protection. Side rotary versions can be configured for CW and/or CCW operation, operating heads rotate 90° for flexible alignment, and 30 mm x 60 mm mounting centers simplify retrofit. Available with plug-in and non-plug-in connections to fit your build standard.

Ideal for OEMs and MRO teams seeking long-life, repeatable switching in tough duty, the LSA1A-1A helps reduce downtime and installation effort while meeting global standards; this performance is reinforced by a 1-year warranty to support your project commitments.

• Brand: Honeywell
• Series: HDLS
• Model: LSA1A-1A
• Housing: Rugged metal
• Protection rating: NEMA 1, 3, 4, 4X, 6, 6P, 12, 13; IP65/66/67
• Mounting centers: 30 mm x 60 mm
• Connection type: Plug-in and non-plug-in
• Approvals: UL, CSA, CE, UKCA, CCC
