428353 (1)

DANFOSS 131H0241 ; FC-302P15KT5E20H1BGXXXXSXXXXA0BXCXXXXD0 Used

DANFOSS 131H0241
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
DANFOSS
HAN:
131H0241
Condition:
Used
Logistics
Weight:
11.50kg
Country of Manufacture:
Taric-Code:
85044088

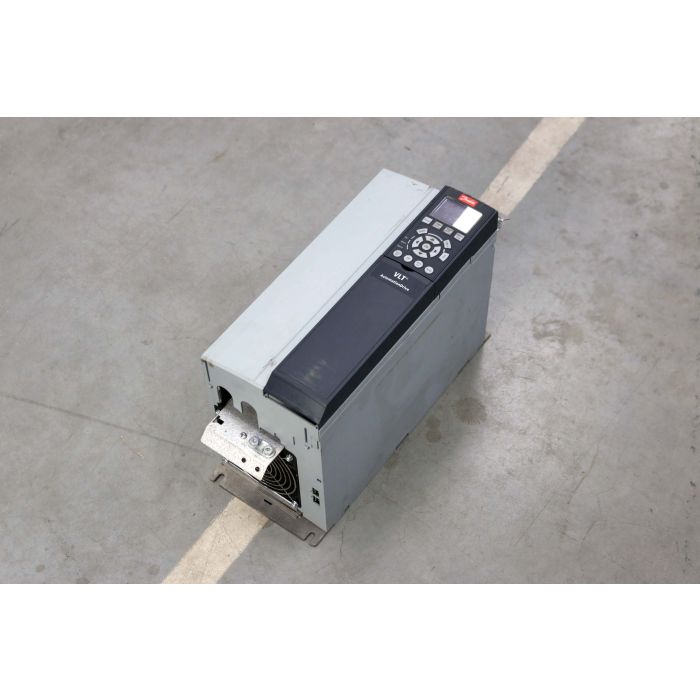

The Danfoss VLT® AutomationDrive FC‑302 (131H0241) is a 15 kW variable frequency drive engineered for 380–500 VAC three‑phase systems in an IP20 chassis. Built for industrial automation, it delivers precise motor control, high efficiency and reliable uptime across applications including pumps, fans, conveyors and general machinery.

This configuration (model code FC-302P15KT5E20H1BGX) pairs a heavy‑duty rating of 27 A with a normal‑duty rating of 37.5 A, an integrated RFI filter class A1/B (C1) for EMC performance, and an integrated brake chopper for controlled deceleration. A graphical Local Control Panel streamlines commissioning and diagnostics, while the PROFIBUS DP interface (MCA 101) enables seamless PLC connectivity; the MCB‑107 24 V DC backup helps maintain control during supply dips. The compact IP20 chassis is ideal for cabinet installation in demanding plant environments.

Designed to reduce downtime and total cost of ownership, the FC‑302 supports dependable operation throughout the lifecycle, and to further safeguard your project and investment it is supplied with a 1‑year warranty.

  • Brand: Danfoss
  • Series: VLT® AutomationDrive FC-302
  • Model: 131H0241 / FC-302P15KT5E20H1BGX
  • Power rating: 15 kW / 20 HP
  • Supply voltage: 380–500 VAC, 3-phase
  • Protection rating: IP20 (Chassis)
  • Fieldbus option: PROFIBUS DP (MCA 101)
  • Brake function: Integrated brake chopper
DANFOSS 131H0241 ; FC-302P15KT5E20H1BGXXXXSXXXXA0BXCXXXXD0 FREQUENCY CONVERTER
