428349 (1)

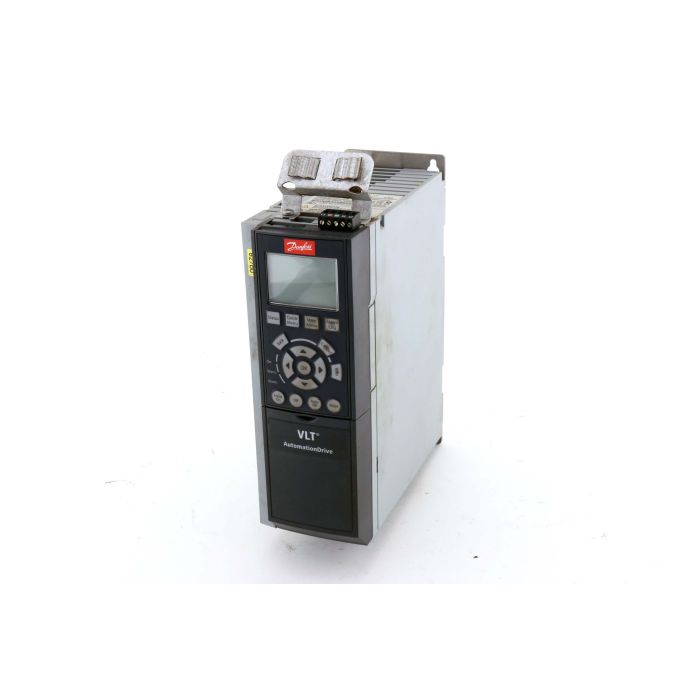

DANFOSS 131B0591 ; FC-302P4K0T5E20H1BXXXXXSXXXXA0BXCXXXXDX Used

DANFOSS 131B0591
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
DANFOSS
HAN:
131B0591
Condition:
Used
Logistics
Weight:
4.60kg
Country of Manufacture:
Taric-Code:
85044088

The Danfoss VLT AutomationDrive FC 302, 4.0 kW AC drive (model 131B0591), is engineered for industrial automation and delivers precise variable-speed control for three-phase motors on 380–500 VAC networks. It supports demanding conveyor, pump, and fan applications with robust motor protection and consistent torque across a wide speed range.

Built on the proven FC‑302 platform, this frequency converter provides heavy-duty performance with a 4.0 kW/5 HP rating, 8.2 A nominal current, and up to 160% overload capability (HO). An integrated brake chopper enables dynamic stopping, while an RFI filter class A1/B (C1) helps meet EMC requirements in control panels. The IP20 chassis in compact A2 frame saves cabinet space, and the PROFIBUS DP MCA 101 option card ensures seamless fieldbus integration; the unit is supplied without a local control panel (LCP) for flexible commissioning.

Engineered for long service life and easy integration, the FC 302 combines reliable motor control with efficient operation and modern diagnostics, and it comes backed by a 1-year warranty to reduce risk and downtime across your project lifecycle.

  • Brand: Danfoss
  • Series: VLT AutomationDrive FC 302
  • Model: 131B0591
  • Power rating: 4.0 kW (5 HP)
  • Supply voltage: 380–500 VAC, 3-phase
  • Fieldbus interface: PROFIBUS DP (MCA 101)
  • Protection rating: IP20 (Chassis)
  • Brake chopper: Integrated
DANFOSS 131B0591 ; FC-302P4K0T5E20H1BXXXXXSXXXXA0BXCXXXXDX FREQUENCY CONVERTER
