427912 (1)

DANFOSS 131B0051 ; FC-302P5K5T5E20H1BGXXXXSXXXXAXBXCXXXXDX Used

DANFOSS 131B0052
Tell us what you need?

If this product is not available right now, our sourcing team can help find an alternative or create a special order for you.

Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
DANFOSS
HAN:
131B0051
Condition:
Used
Logistics
Weight:
6.30kg
Country of Manufacture:
Taric-Code:
85044090

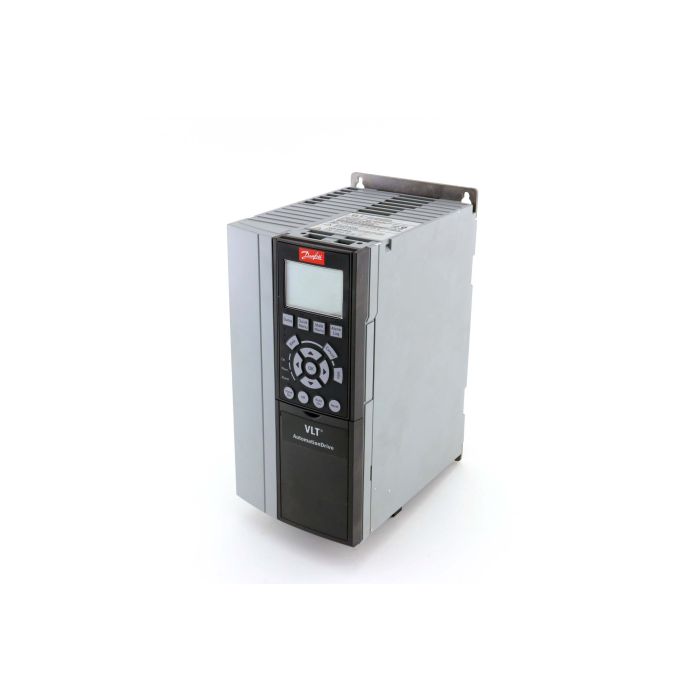

The Danfoss VLT AutomationDrive FC 302, 5.5 kW (131B0051), is a compact and robust variable frequency drive designed for precise speed control of three-phase motors across industrial automation, pumping, HVAC and material handling applications. With a wide 380-500 VAC supply range and the proven FC-302 platform, it delivers dependable performance, energy efficiency and easy integration into modern control panels.

Engineered for high-overload duties, this frequency converter provides 5.5 kW output with a continuous motor current of 11 A, supporting demanding start/stop cycles and dynamic loads. An integrated RFI filter (Class A1/B, C1) helps meet EMC requirements, while the IP20 chassis version is ideal for cabinet mounting. A built-in brake chopper enables rapid deceleration, and the graphical LCP simplifies commissioning, parameterization and diagnostics. Frame size A3 and the FC-302P5K5T5E20H1BGX model code align with common panel footprints and wiring practices.

Whether used in new designs or retrofits, this Danfoss FC-302 VFD shortens commissioning time and ensures reliable motor control with stable torque and low harmonic impact, giving your project added assurance with a 1-year warranty.

  • Brand: Danfoss
  • Series: VLT AutomationDrive FC 302
  • Model: 131B0051 / FC-302P5K5T5E20H1BGX
  • Power rating: 5.5 kW (HO duty)
  • Mains voltage: 380-500 VAC, 3-phase
  • Output current (continuous): 11 A
  • Protection rating: IP20, chassis
  • EMC/RFI filter: Class A1/B (C1)
DANFOSS 131B0051 ; FC-302P5K5T5E20H1BGXXXXSXXXXAXBXCXXXXDX
