428912 (1)

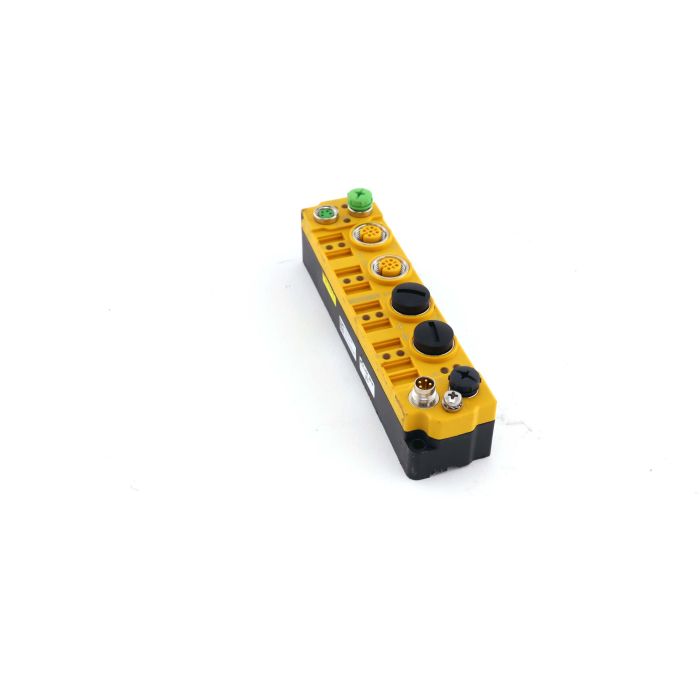

BECKHOFF EP1908-0002 ETHERCAT BOX Used

BECKHOFF EP1908-0002
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
BECKHOFF
HAN:
EP1908-0002
Condition:
Used
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The Beckhoff EP1908-0002 is an EtherCAT Box for decentralized automation: an 8-channel 24 V DC digital input module with M12 field connectivity and TwinSAFE capability. Engineered for machine builders and system integrators, it brings reliable signal acquisition directly to the field with IP67-class ruggedness and seamless EtherCAT performance.

Supporting Safety over EtherCAT via TwinSAFE, the EP1908-0002 meets EN ISO 13849-1 Category 4, PL e and EN 61508 SIL 3. The module offers eight 24 V DC digital inputs with a typical read-to-bus latency of 5.5 ms and a parameterizable watchdog for defined fault response. Two A-coded, shielded M8 4-pin bus ports enable daisy-chaining, while A-coded 5-pin M12 sockets provide robust field connections. A compact PA6 housing and flexible mounting allow cabinet-free installation in harsh industrial environments rated IP65/66/67.

Use it to shorten wiring runs, simplify modular machine design, and standardize safety I/O across EtherCAT topologies, with a 1-year warranty adding extra assurance for demanding operations.

  • Brand: Beckhoff
  • Model: EP1908-0002
  • Protocol: TwinSAFE (Safety over EtherCAT)
  • Number of inputs: 8 digital inputs
  • Supply voltage: 24 V DC
  • Response time: typ. 5.5 ms
  • Protection rating: IP65/66/67 (EN 60529)
  • Connections: Bus 2 x M8 (4-pin, A-coded, shielded); I/O M12 (5-pin, A-coded)
BECKHOFF EP1908-0002 ETHERCAT BOX, 8-CHANNEL DIGITAL INPUT, 24 V DC, M12, TWINSAFE
