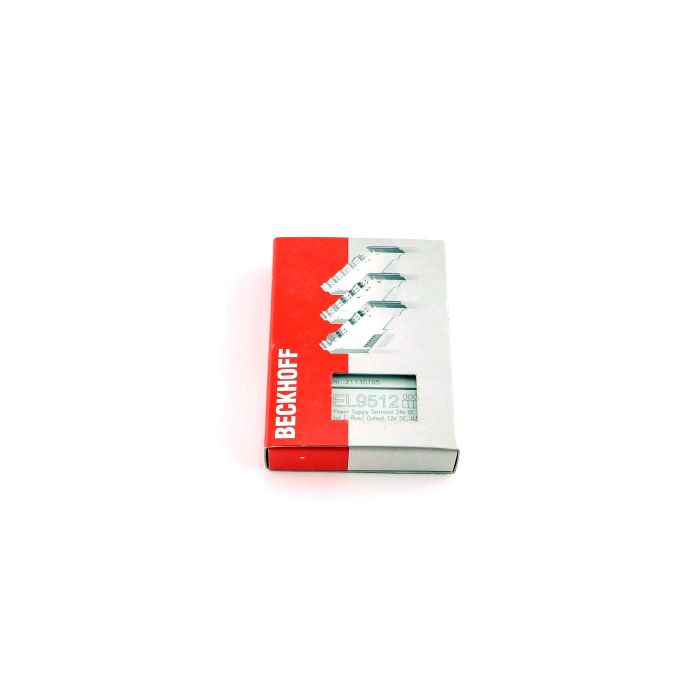

BECKHOFF EL9512 New

The Beckhoff EL9512 EtherCAT Terminal is a compact 12 V DC, 0.5 A power supply module designed to deliver stable auxiliary power within EtherCAT I/O systems. It converts a 24 V field supply into a clean 12 V rail, ensuring reliable power for sensors, actuators, and control electronics across distributed industrial automation.

Featuring a stabilized 12 V output with ±1% regulation and residual ripple below 5 mV, the EL9512 is short-circuit proof and provides clear status feedback via an overcurrent LED and diagnostics in the process image. Electrical design highlights include low E-bus current consumption (90 mA), robust IP20 housing, and straightforward 35 mm DIN-rail mounting, with certifications for CE, UL, and hazardous areas (ATEX/IECEx, Ex ec IIC T4 Gc) supporting deployment in demanding environments.

Engineered for fast commissioning and low maintenance, this power supply terminal helps machine builders and system integrators stabilize 12 V loads in EtherCAT networks to reduce downtime, and it is supplied with a 1-year warranty for added assurance throughout the lifecycle.

• Brand: Beckhoff
• Series: EtherCAT Terminals (EL)
• Model: EL9512
• Input voltage: 24 V DC (-15%/+20%)
• Output voltage: 12 V DC ±1% (stabilized)
• Output current: 0.5 A
• Protection rating: IP20
• Approvals: CE, UL, ATEX, IECEx
