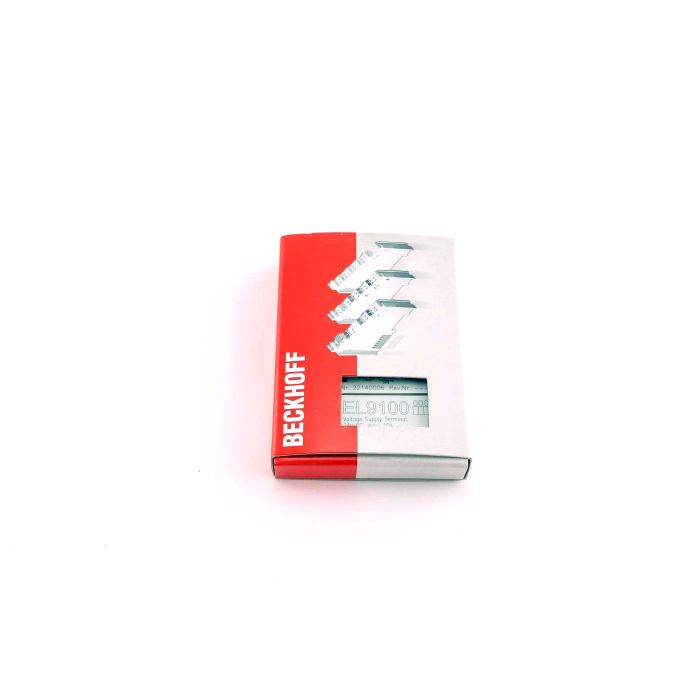

298988 (1)

BECKHOFF EL9100 New

BECKHOFF EL9100
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
BECKHOFF
HAN:
EL9100
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The Beckhoff EL9100 EtherCAT Terminal is a compact potential supply terminal for reliable 24 V DC distribution within EtherCAT I/O systems. Designed for industrial automation panels, it supports renewed infeed of the power contacts and helps maintain a stable field supply in modular machine and process control applications.

This potential supply terminal is rated for a current load of up to 10 A and provides 500 V electrical isolation between the E-bus and field potential. The 12 mm housing is suitable for side-by-side mounting with EtherCAT terminals with or without power contacts, and the green power LED gives clear status indication during commissioning and maintenance.

With DIN rail installation, spring-actuated wiring and approvals including CE, UL, ATEX and IECEx, the EL9100 is a practical choice for professional control cabinet engineering, supplied with the assurance of a 1-year warranty.

  • Brand: Beckhoff
  • Series: EL EtherCAT Terminals
  • Model: EL9100
  • Technology: potential supply terminal
  • Nominal voltage: 24 V DC
  • Current load: ≤ 10 A
  • Electrical isolation: 500 V E-bus/field potential
  • Connection type: spring-actuated terminals
BECKHOFF EL9100
