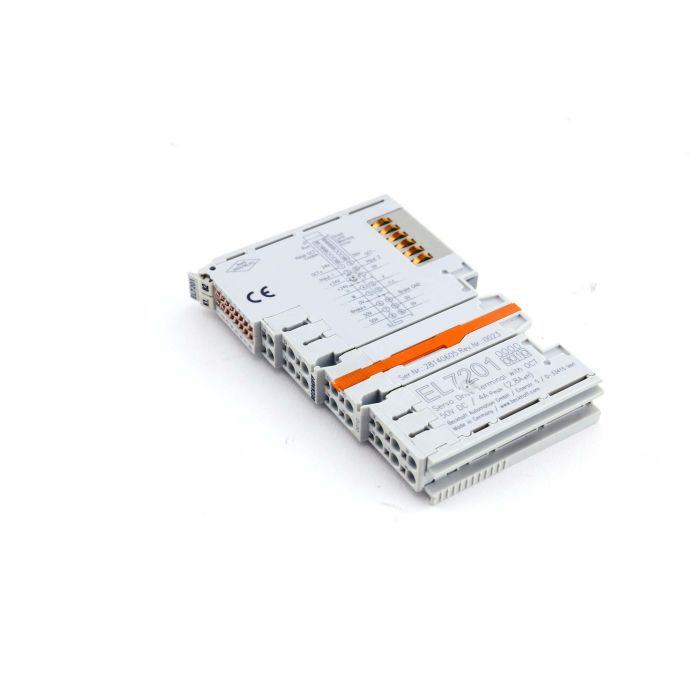

428914 (1)

BECKHOFF EL7201 ETHERCAT TERMINAL Used

BECKHOFF EL7201
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
BECKHOFF
HAN:
EL7201
Condition:
Used
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The Beckhoff EL7201 EtherCAT Terminal is a 1-channel motion interface for compact drive technology, enabling precise control of permanent magnet synchronous servomotors with resolver feedback. With an integrated servo amplifier delivering up to 2.8 A rms at 48 V DC, this 12 mm HD terminal brings high-performance motion control to the I/O level for space-constrained machines and modular equipment.

Featuring direct motor connection with feedback, a resolver input, 24 V electronics via power contacts, and a power stage of 8–48 V DC, the EL7201 provides 2.8 A rms continuous and 5.7 A peak for 1 s; with the optional ZB8610 fan cartridge, capability increases to 4.5 A rms and 9.0 A peak. Fast control loops (32 kHz current, 16 kHz PWM and speed) and distributed clocks ensure deterministic EtherCAT synchronization. An integrated 24 V/0.5 A motor brake output, 500 V isolation between E-bus and field, IP20 housing with status LEDs, CE and UL approvals, and 35 mm DIN-rail mounting streamline robust implementation.

Engineered for OEMs and system integrators seeking deterministic EtherCAT motion in a compact footprint, the EL7201 simplifies cabinet design and reduces wiring while maintaining long-term reliability, and it supports your project with confidence by being supplied with a 1-year warranty.

  • Brand: Beckhoff
  • Series: EtherCAT Terminal
  • Model: EL7201
  • Number of channels: 1
  • Load type: Permanent Magnet Synchronous Motor (PMSM)
  • Feedback type: Resolver
  • Supply voltage: Electronics 24 V DC; Power 8–48 V DC
  • Continuous/peak current: 2.8 A rms (5.7 A peak 1 s)
BECKHOFF EL7201 ETHERCAT TERMINAL, 1-CHANNEL MOTION INTERFACE, SERVOMOTOR, 48 V DC, 2.8 A, RESOLVER
