heroicons/solid/check 10K Products in Stock
heroicons/solid/check Worldwide Delivery
heroicons/solid/check Order before 4 PM CET, shipped today
heroicons/solid/check New 12 months warranty
411510 (1)

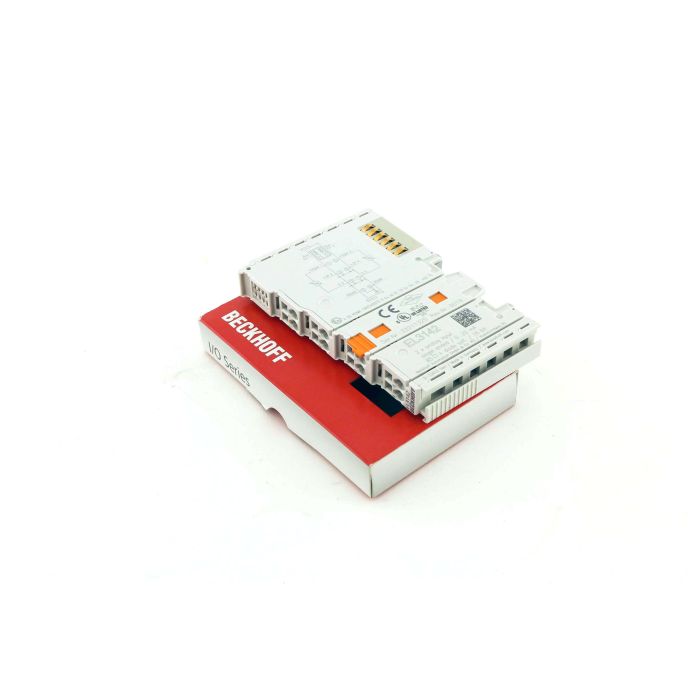

BECKHOFF EL3142 New

BECKHOFF EL3142
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
BECKHOFF
HAN:
EL3142
Condition:
New
Logistics
Weight:
0.10kg
Country of Manufacture:
Taric-Code:
85389091

The Beckhoff EL3142 EtherCAT Terminal is a 2-channel analog input module for precise current measurement from 0–20 mA with 16-bit resolution, engineered for fast, deterministic data acquisition in distributed I/O systems across machine building, factory automation, and process control. Its 12 mm compact housing and seamless EtherCAT integration help increase analog signal density while keeping cabinet footprints small.

Each single-ended channel delivers accurate conversion with <±0.3% full-scale uncertainty and a typical conversion time of ~60 μs (fast mode ~40 μs). Integrated input filtering up to 5 kHz, switchable FIR/IIR filters, and limit value monitoring provide robust signal conditioning, while distributed clocks with sub-microsecond precision support tightly synchronized measurements. Powered via the E-bus and offering 500 V isolation between E-bus and signal, the EL3142 is suitable for IP20 cabinet installations and mounts on a 35 mm DIN rail for straightforward deployment.

Designed for quick commissioning with TwinCAT and other EtherCAT masters, the EL3142 accelerates analog I/O integration and reduces panel complexity without compromising reliability, and it is backed by a 1-year warranty to support maintenance and lifecycle planning.

  • Brand: Beckhoff
  • Series: EL3xxx
  • Model: EL3142
  • Bus/system: EtherCAT
  • Channels: 2 (single-ended)
  • Input type: Current 0–20 mA
  • Resolution: 16 bit
  • Protection rating: IP20
