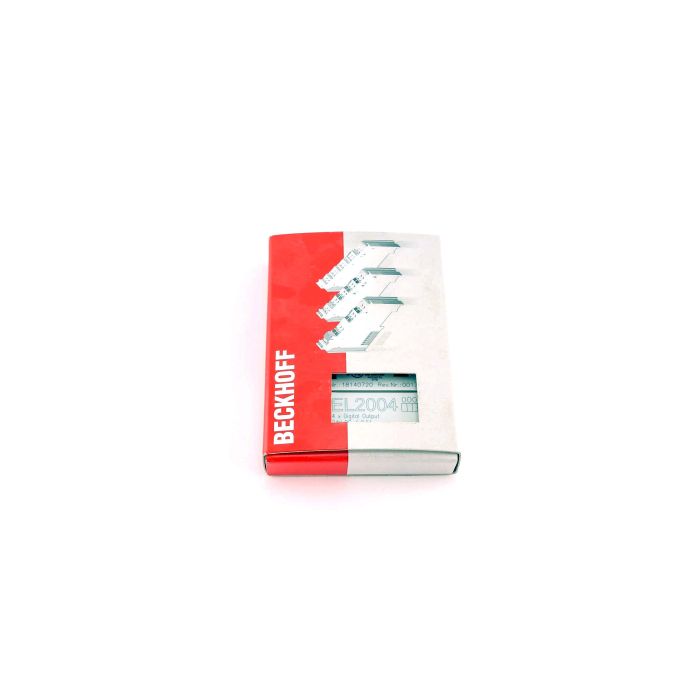

The Beckhoff EL2004 EtherCAT Terminal is a compact 4-channel digital output module for reliable actuator control in industrial automation systems. Designed for 24 V DC applications, it is well suited for switching ohmic, inductive and lamp loads in machine building, control cabinets and distributed I/O installations.

Each output channel provides up to 0.5 A and is short-circuit proof, supporting dependable operation in demanding electrical environments. The terminal uses 2-wire connection technology, integrates directly into the EtherCAT Terminal system and requires no address or configuration setting, enabling fast commissioning and efficient expansion of Beckhoff I/O stations.

With electrical isolation between the E-bus and field potential, signal LEDs and DIN rail mounting, the EL2004 offers a practical solution for professional control engineering projects, and it is supplied with a 1-year warranty for added purchasing confidence.

• Brand: Beckhoff
• Series: EL EtherCAT Terminals
• Model: EL2004
• Output type: 4-channel digital output
• Nominal voltage: 24 V DC (-15%/+20%)
• Max. output current: 0.5 A per channel
• Connection technology: 2-wire
• Protection rating: IP20
