406962 (1)

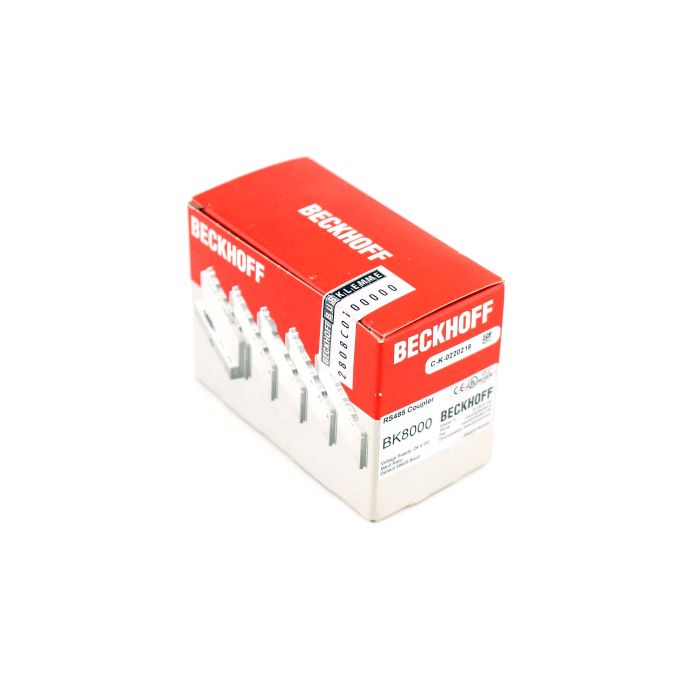

BECKHOFF BK8000 New

BECKHOFF BK8000
Excl. Tax
Transport and Handling Information
Need more?

Need something we currently don't have available? Our sourcing team can help you find what you need

General
Brands:
BECKHOFF
HAN:
BK8000
Condition:
New
Logistics
Weight:
0.30kg
Country of Manufacture:
Taric-Code:
85389091

The Beckhoff BK8000 RS485 Bus Coupler offers a reliable interface for connecting up to 64 Bus Terminals in industrial fieldbus systems. Engineered for robust performance in automation environments, it facilitates efficient data transmission over RS485, enhancing system integration and control.

With support for 512 digital inputs/outputs and 256 analog signals, configurable via KS2000 software, the BK8000 features data rates of 9.6 kbaud, 19.2 kbaud, and 38.4 kbaud. Powered by 24 V DC, it provides 1750 mA to the K-bus, IP20 protection, and compliance with standards like EN 61000 for EMC and EN 60068 for vibration resistance.

This versatile RS485 bus coupler from Beckhoff ensures seamless operation in hazardous areas with ATEX and IECEx approvals, delivering long-term dependability backed by our 1-year warranty.

  • Brand: Beckhoff
  • Model: BK8000
  • Bus interface: RS485 D-sub
  • Number of Bus Terminals: 64
  • Power supply: 24 V DC (-15%/+20%)
  • Protection rating: IP20
  • Data transfer rates: 9.6 kbaud, 19.2 kbaud, 38.4 kbaud
  • Approvals: CE, CCC, UL, ATEX, IECEx, DNV
BECKHOFF BK8000, BUS COUPLER FOR UP TO 64 BUS TERMINALS RS485 INTERFACE
