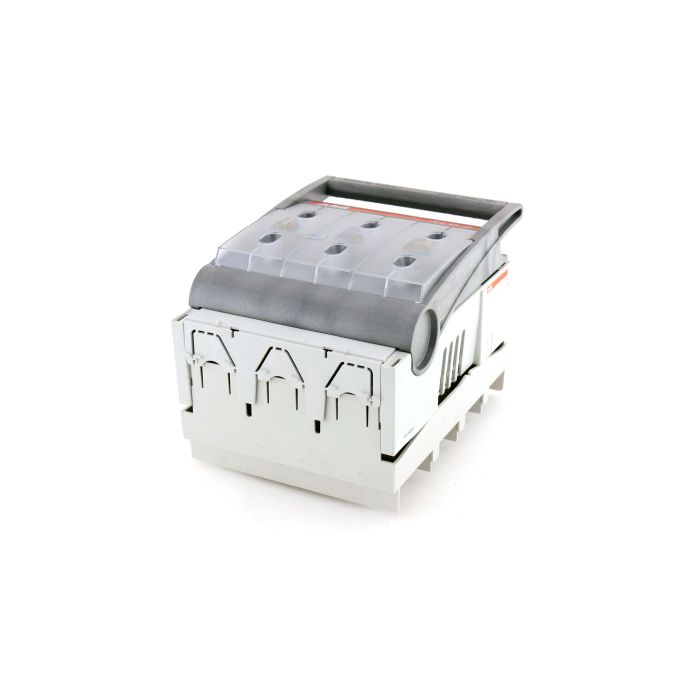

The ABB XLP2-A60/120-B-below fuse switch disconnector delivers safe, dependable isolation and circuit protection for low-voltage distribution and panel building. Designed for demanding industrial switchgear environments, this compact 3-pole unit combines high performance with straightforward integration on 60 mm busbar systems, making it ideal for feeders, sub-distribution boards and MCC applications.

Engineered to IEC 60947-3, the XLP2 uses the DIN NH2 fuse system and is supplied with the A60/120 adapter for direct mounting on 60 mm busbars. Rated 400 A at 500 V AC (50/60 Hz), it offers a conditional short-circuit rating up to 50 kA at 690 V and 8 kV impulse withstand, with low power loss for efficient thermal behavior. The front-cover 3-pole handle enables safe load disconnection, while lug terminals with cable entry from below (no clamps or bolts included) simplify installation in space-constrained enclosures; IP30 protection supports use inside typical switchboards.

Whether you are retrofitting switchboards or building new assemblies, this ABB fuse switch disconnector helps reduce downtime, enhance serviceability and standardize components across sites, and it is backed by a 1-year warranty to give your project added assurance throughout commissioning and operation.

• Brand: ABB
• Series: XLP2
• Model: XLP2-A60/120-B-below
• Rated current: 400 A
• Rated operational voltage: 500 V AC
• Poles: 3P
• Mounting type: 60 mm busbar system
• Short-circuit rating: 50 kA at 690 V
