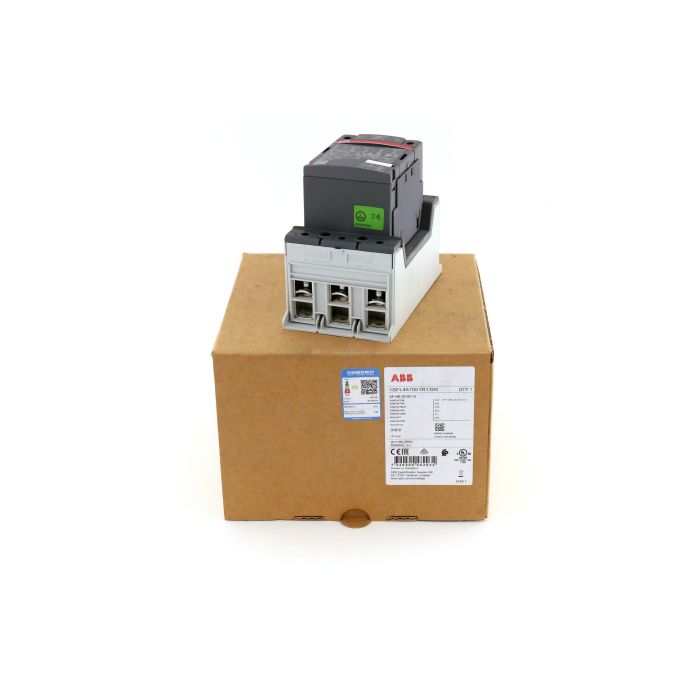

The ABB AF146-30-00-13 is a heavy-duty 3-pole power contactor engineered for dependable motor control and power switching in industrial automation and power distribution. With IEC ratings up to 1000 V and AC-3 performance to 75 kW at 415 V (146 A) alongside AC-1 capability to 225 A, it supports pumps, fans, compressors and general-purpose loads while helping panel builders and OEMs standardize across global installations.

Built on ABB’s AF technology, the coil accepts a wide control voltage range of 100–250 V AC/DC at 50/60 Hz, tolerates supply fluctuations and reduces control power consumption. Integrated surge suppression removes the need for external RC or varistor components, saving space and wiring time. Double-clamp terminals with generous conductor capacity support 2 x 10–70 mm² cabling, while the block-type design allows quick addition of auxiliary contacts and accessories. With 5 million mechanical operations and compliance to IEC 60947-4-1 plus UL/CSA, the AF146-30-00-13 ensures robust performance in demanding environments.

Ideal for new builds and retrofit projects, this contactor delivers reliable starting and switching in a compact footprint with consistent, energy-efficient operation, and to support lifecycle planning it is supplied with a 1-year warranty for added peace of mind.

• Brand: ABB
• Model: AF146-30-00-13
• Poles: 3
• Control voltage range: 100–250 V AC/DC 50/60 Hz
• Rated operational voltage: 1000 V AC (IEC) / 600 V AC (UL)
• Rated operational current AC-3: 146 A (415 V)
• Rated power AC-3: 75 kW (415 V)
• Connection type: Double clamp
